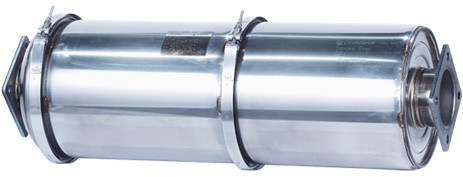

CleanEarth - DPF

Passive DPFs for LDV, MDV, HDV SF-C, SF-P

Applicable range SF-1C, SF-1P(LDV) : up to 3,000cc / ~174ps(125kW) SF-2C, SF-2P(MDV) : 3,000~11,000cc / ~235ps(170kW) SF-3C, SF-3P(HDV) : 8,000~17,000cc / ~460ps(330kW) Passive type (SF-C , Oxidation Catalyst / Catalyzed filter)
Partial type (SF-P, Oxidation catalyst / Catalyzed partial filter)
Passive DPF for medium, high speed vehicles
Passive DPFs for LDV, MDV, HDV : SF-C, SF-P
Passive type
  • SiC Filter

    SiC Filter

  • Cordierite Filter

    Cordierite Filter

Partial type
  • Partial-plugging Filter

    Partial-plugging Filter

  • Pinhole Filter

    Pinhole Filter

Special features
  • Catalyzed DPF regenerating continuously by aid of exhaust heat from engine
  • Various filter solutions according to the target percent of PM reduction efficiency
  • High sulfur application by using unique sulfur tolerant catalyst developed by OE coater
  • Various kinds of customized canning design according to the space and condition of vehicle installation

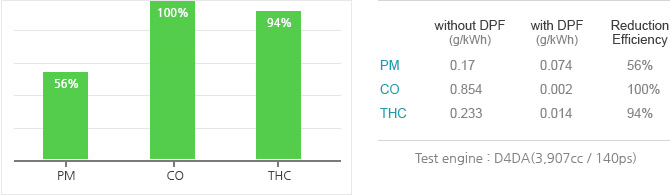

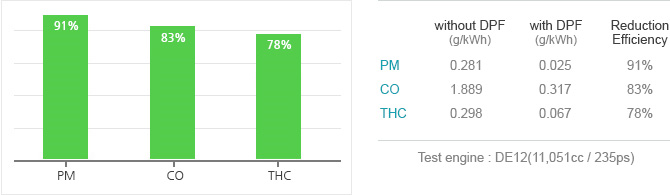

Performance
Passive DPF
Partial DPF
